Speedrax Shortspan Archive Shelving

Speedrax is an all purpose shortspan shelving system that is suitable for use in a wide variety of workplace environments. With a wide range of size options available, Speedrax archive shelving is a low cost option for all your storage needs. Shelves can be easily adjusted to accommodate changing requirements and offer unrestricted access from all sides.

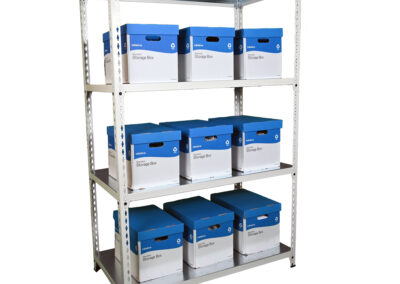

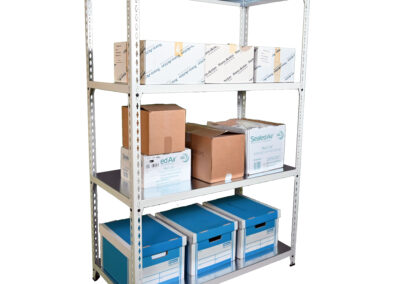

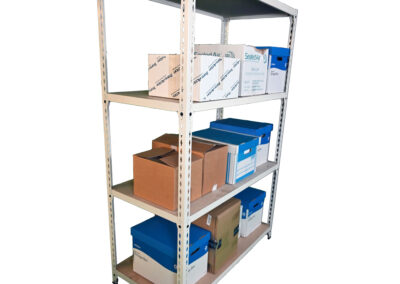

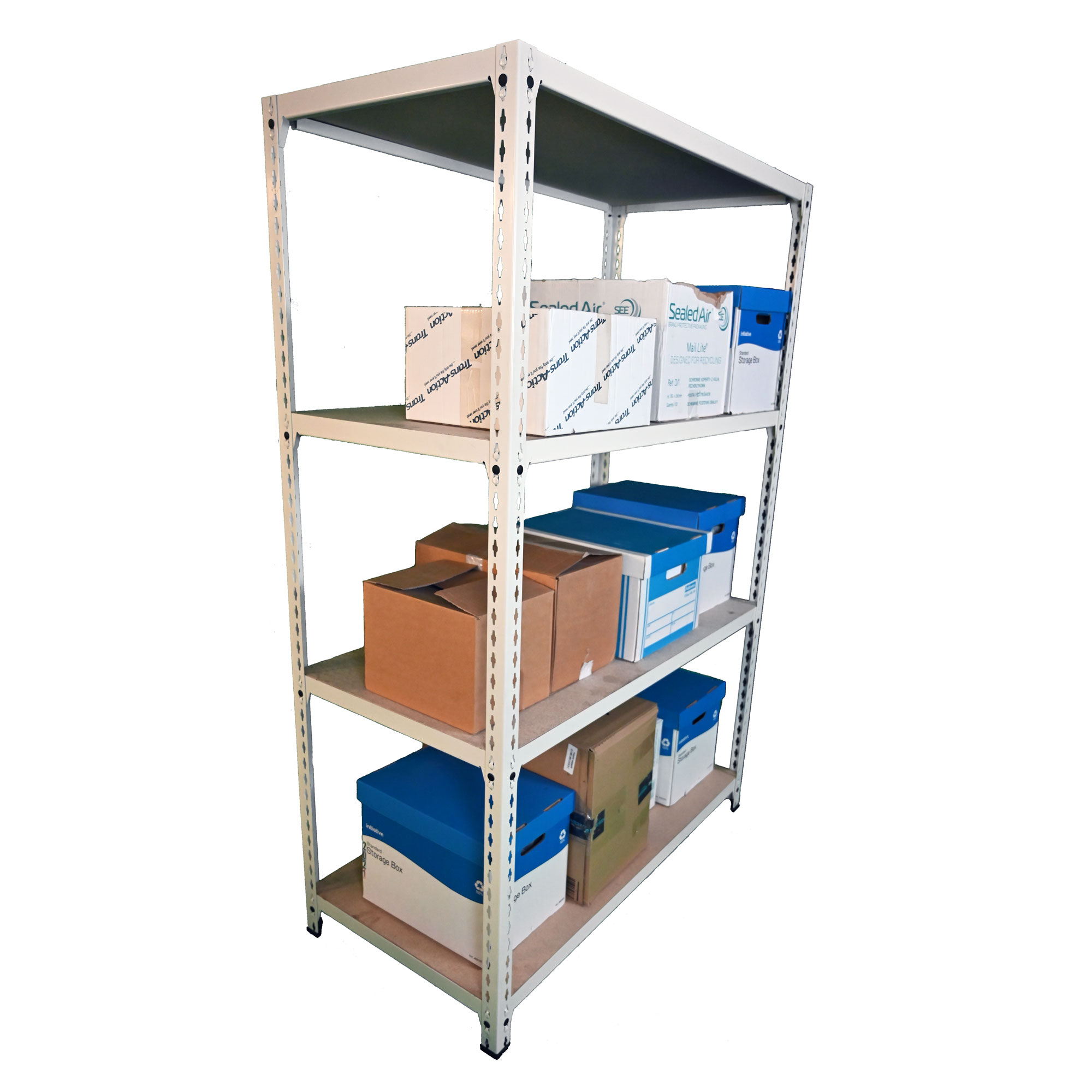

Speedrax Shortspan Archive Shelving.

Comprising steel posts and beams supporting chipboard or steel shelves. Speedrax is ideal for hand loaded, bulky items.

Speedrax can be used for a variety of uses including:

Combined with document storage boxes to provide a solution for archival storage in a wide variety of market sectors.
Speedrax garment hanging is simple but ingenious solution for the storage of flat pack and hanging garments. The base shelf is a standard chipboard shelf for boxed items, the hanging rails are simply inverted beams
For the storage of paints, chemicals and liquids in general, Speedrax with galvanised shelves is the most appropriate option.
Speedrax all purpose shelving is also suitable for use as workbench, packing station or low level shelving bay. A wide range of styles and sizes are suitable for use in stores and workshop areas.
Kanban small parts shelving is the ideal solution for organising your small parts storage. Sloping steel shelves allow bins to locate one behind the other so as an empty bin is remove the full rear bins slide forward ready to use.

Configuration Options:

As a Shelving Bay.

	5 x Chipboard Shelves	5 x Steel Shelves
Height (mm)	2080 and 2400	2080 and 2400
Width (mm)	900, 1000 and 1200	900, 1000 and 1200
Depth (mm)	300, 450, 600 and 900	300, 450 and 600
Bay Capacity	A maximum bay load of 3000kgs with beam at 1000mm centres	A maximum bay load of 2000kgs with beams at the top and bottom
Shelf Capacity (When load is uniformally distributed)	Up to 600mm deep 900mm wide – 375kg 1200mm wide – 350kg Up to 900mm deep 900m wide – 200kg 1200mm wide – 200kg	125kg
Finish	Posts – Epoxy powder coated blue Beams – Epoxy powder coated grey Other finishes are available POA	Posts – Epoxy powder coated blue Beams – Epoxy powder coated grey Shelves – Galvanised Other finishes are available POA

Wide Access Shelving.

	3 x Chipboard Shelves
Height (mm)	2080, 2400 and 3000
Width (mm)	1500, 1800, 2100 and 2446
Depth (mm)	450, 600, 900 and 1200
Bay Capacity	4250kg with beams at 1100mm centres
Shelf Capacity (when load is uniformed distributed)	1500mm – 700kg 1800mm – 675kg 2100mm – 650kg 2446mm – 600kg
Finish	Posts – Epoxy powder coated blue Beams – Epoxy powder coated grey
